Pneumatic Road Blocker Barrier
Click to enlarge
Home Security Systems Road Blocker Pneumatic Road Blocker Barrier
Surface Mounted Impact Test Anti-ram Wedge Barrier Road Blocker
Surface Mounted Impact Test Anti-ram Wedge Barrier Road Blocker
Back to products
Manual Portable Wedge Barricade Barrier
Manual Portable Wedge Barricade Barrier

Pneumatic Road Blocker Barrier

Pneumatic Road Blocker Barrier

Category: Road Blocker
Share:
  • Description
  • Shipping & Delivery
Description

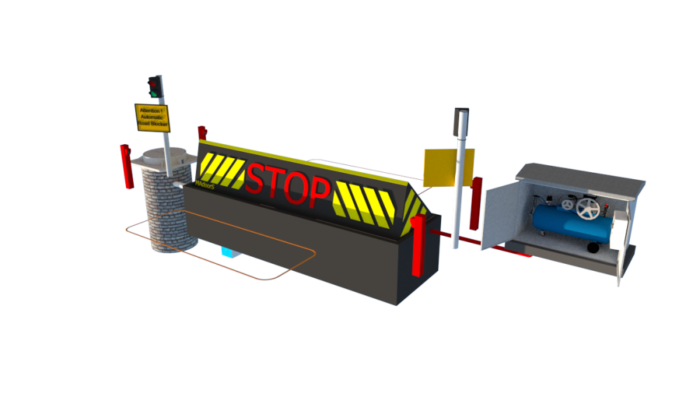

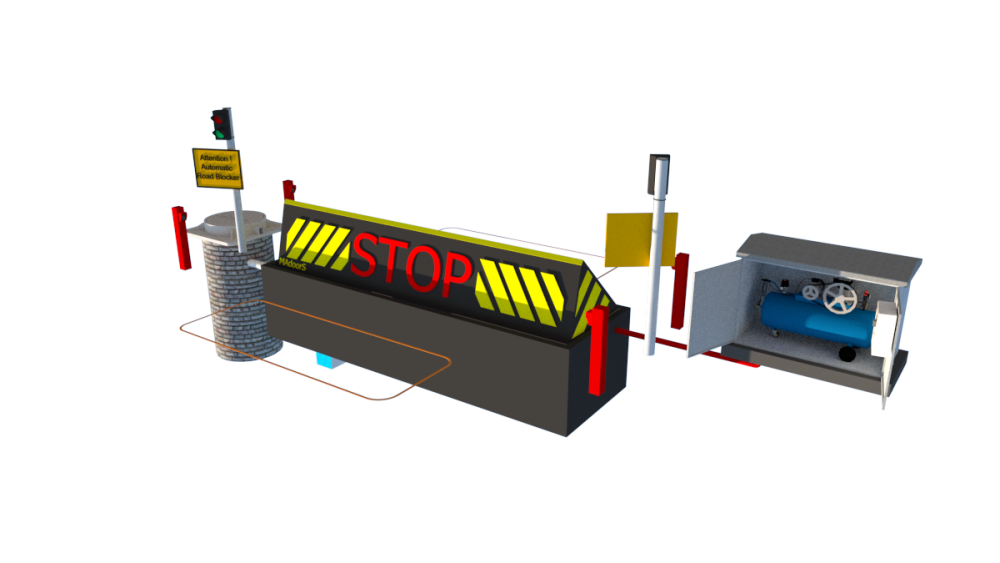

Pneumatic Air Road Blocker Barrier

It is an automatic road blocker block barrier system that works with air pressure. It works faster than hydraulic systems. Opening and closing time is between 2-4 seconds.

With emergency air evacuation system, 1 sec. it can open the way to the passage. And by transmitting the compressed air to the pistons with spare air pressure tanks, it can close the road to 1 second pass in case of emergency.

220 volts and 380 volts ac. they work with voltage. It can be connected to the Ups system. In case of power failure, it can make 5 opening and closing with the air pressure in the tank. Our pneumatic air type road blocker road obstacle barriers have the M50 Crash test certificate. In terrorist attacks with bomb-laden vehicles, a vehicle of 7500 kg arrives at a speed of 80 km / h and hits the barrier system, so the vehicle cannot enter the safe zone.

The K12 PAS68 is the only barrier system in the world that works with a crash test report. Our high security anti-terrorist type barrier system can be manufactured in one piece up to 6 meters. Reciprocating compressor units are used in our 3 meter systems. Screw type compressor systems are used in our longer barrier systems.

Dams, Power plants, Hotels, Shopping centers, Military institution entrances and so on. It is a barrier system used for all transitions. They are installed by digging into the ground. There is a submersible pump inside the barrier that resists rain water to the outside area. Photocell and Loop detectors do not lift up when a vehicle is on it. As long as the vehicle enters or exits and is not on it, it can work. Thanks to the traffic lights and safety warning signs, crossings are made more safely. When our barrier system lands on the ground and is completely level with the ground level, the traffic light turns on a green light. Before it starts to rise from the ground, the light turns red.



Shipping & Delivery

Related products

Surface Mounted Retractable Block Barrier

Road Blocker

Surface Mounted Retractable Block Barrier

Quick view

Pas68 M50 Crash Tested Impact Test Hydraulic Road Blocker

Road Blocker
Pas68 M50 Crash Tested Impact Test Hydraulic Road Blocker:PAS 68 is an industry testing standard which identifies impact test methods, tolerances, test vehicle type and performance criteria that needs to be met. It has been prepared to address the needs of organisations who wish to have the assurance that vehicle security barriers (VSB) will provide the level of impact resistance that they seek.
Quick view

Spike Road Blocker Barrier

Road Blocker
Spike Road Blocker Barrier
Quick view
Hot

Hydraulic Road Blocker

Road Blocker
Karen Systems Hydraulic Road Blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.
Quick view
Gaff Barrier Mini Road Blocker

Gaff Barrier Mini Road Blocker

Road Blocker
Gaff Barrier Mini Road Blocker box sizes 60 * 28 * 55 cm (+ / - 15%) , embedded in the floor assembly, made in the form of a slice of cake with a rose in a circular motion that prevents the passage of vehicles, completly steel structure , this automatic barrier designed for high security.
Quick view

M50 Wedge Barricade Barrier

Road Blocker
M50 Wedge Barricade Barrier
Quick view

Automatic Speed Bump

Road Blocker

Automatic Speed Bump

The Karen systems automatic speed bump is configured to fold downward substantially flush with the roadway surface over a short but predetermined period of time when driven over by a motor vehicle. If the motor vehicle is traveling at a reasonable speed the retraction of the speed bump allows the vehicle to travel over the retracted speed bump with little or no vertical displacement of the vehicle. However, a motor vehicle traveling at a higher than permissible speed passes over the motorized speed bump too rapidly to allow the bump to retract, resulting in a significant jolt to the vehicle and its occupants. The mechanism incorporates a number of shock absorbers and springs to accomplish the effect. The strength of the shock absorbers and springs are determined according to the number of units installed, the anticipated speed of traffic, and numerous other factors .
Quick view

Beam Crash Barrier

Road Blocker
Beam Crash Barrier
Quick view
