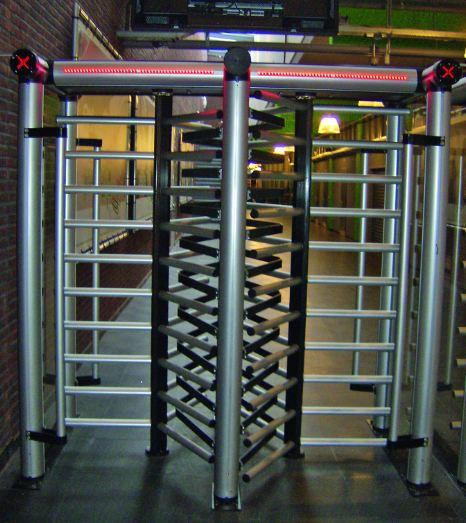

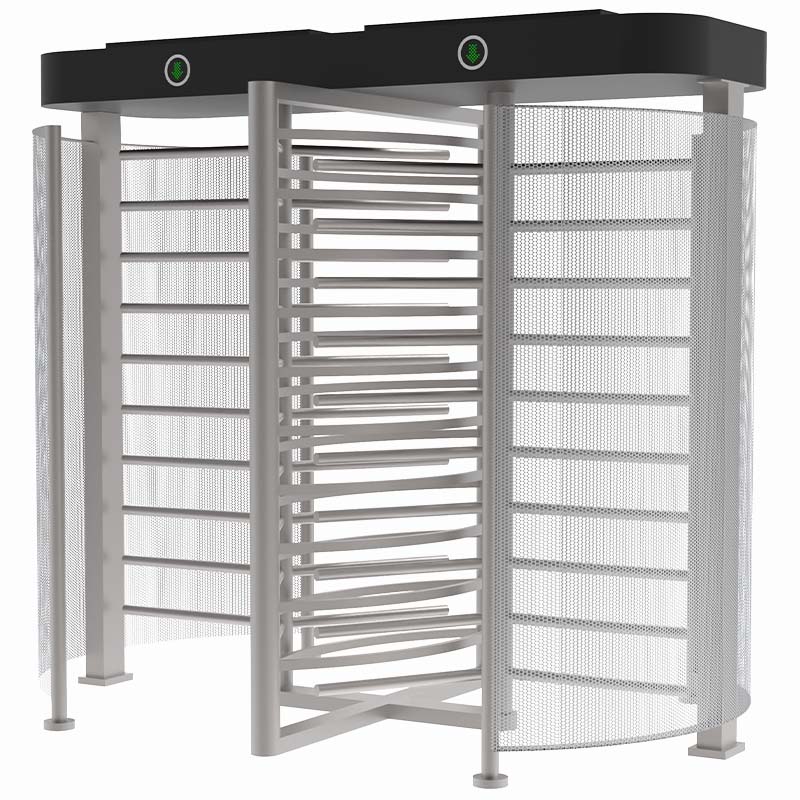

MDRS-300 double full height stainless steel turnstile systems
MDRS-300 full height turnstile system, which can provide dry contact for passage triggering, is produced with microprocessor control. Depending on customer requests, the supply voltage conditions you want can be provided. The waist turnstile system, which has a warranty period of two years, can be controlled by connecting to the security systems. In case of emergency alarms such as fire, earthquake and disaster, the turnstile automatically switches to free passage mode.
Double full-length Stainless Steel and Electro-Static Type Powder Coated Full Height Turnstile Stainless Steel It is made of 304 quality stainless steel and can be used in outdoor weather conditions without any problems. It is designed for places where high level of security is required and does not allow to pass by jumping on it like other turnstiles. It can be used integrated with fingerprint reader, face recognition device, card reader and vein recognition devices, as well as barcode and QR code reader if desired.
If there is a heavy passage requirement in narrow entrances, if it is impossible to use more than one height turnstile, Karen Double Height Turnstile Systems are preferred in such cases. It is low cost and the right product for narrower entrances. Our production of double height turnstiles such as Karen Height Turnstiles; It can be produced as Fully Painted, Fully Stainless or Middle Rotor Stainless Body Painted.
In full-height double turnstile types;
Three Arms and High Security,
We have Four Arms and high security mechanisms.
Our Double Boy Turnstile systems . It is designed to work with all kinds of access control units . In practice, they are used more often as a stadium turnstile with a barcode reader, and it is used as a prison turnstile in prisons with Iris-Eye Scanning.
Double Boy Turnstile Working Modes
Two-way single pass
Single pass in the set direction
Always free or locked
Free passage in the set direction
Double size turnstile
1. Card reader works with iris recognition, face recognition, proxy, myfair card etc. all dry contact information.
2. They are made of stainless chrome nickel steel or completely dipped galvanized steel.
3. Complete mechanical parts can be manufactured from pipe or profile.
4. It is the only turnstile in the market that takes up minimum space with maximum passage width.
5. Optional power led with or without light manufacturing options are available.
6. They are quickly mounted on the floor.
7. 220 volts ac. It works with feeding.
8. Rotator is 24 volt dc. It is made of brass.
9. There is an electromagnetic lock system.
10. When the body is loaded during the transition, there is absolutely no breakage and bending in the upper shaft and lock system.
11. It is guaranteed for 2 years.
12. TSE hyb certificate
13. CE certificate
14. ISO 9001:2000 certificate
15. Domestic manufacturer certificate – capacity report
16. Input – output reverse manufacturing possibility
17. Possibility of manufacturing in the same direction as the entrance – exit
