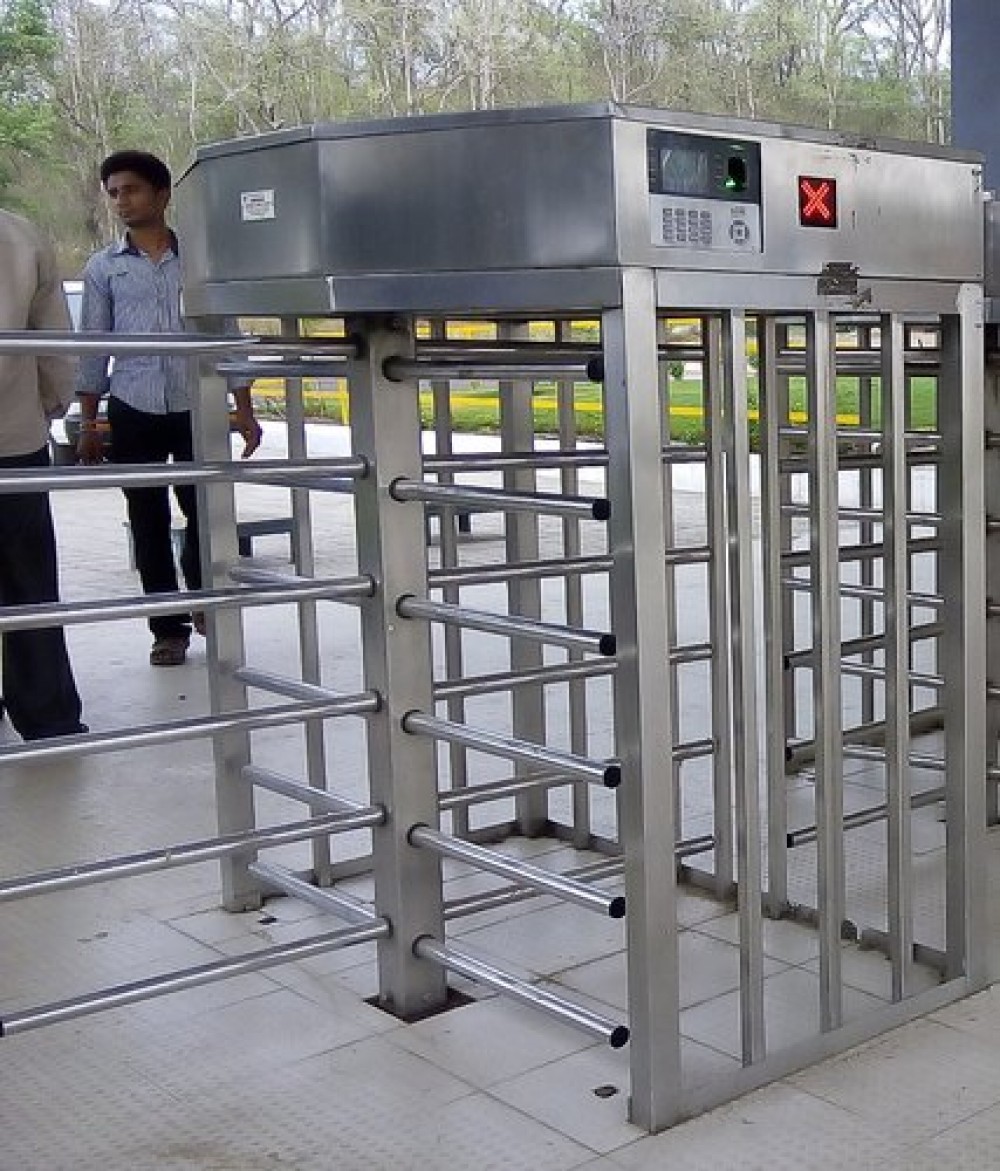

MDRS-H-200 Half Height Turnstile System , Half Height Turnstile Access System
MDRS-H-200 Karen Stainless Steel or Electro-Static Powder Coated Type Half Height Turnstile Systems . It is produced in a structure that can work with 115-240 volts AC energy. Its usage areas are quite common and it is preferred by many companies, institutions and organizations, thanks to its decorative appearance. It is preferred in harsh outdoor weather conditions as it is produced from stainless steel . When a turn starts in one direction, the opposite direction is blocked. After passing the half turn, the arrival to the next position is provided automatically and by softening, thanks to the spring and hydraulic shock absorber structure.
One-way or two-way access can be made from our Half Height Turnstile Systems. These transitions can be controlled or free. Even if both passes are card reader controlled, the end user can release the entrance or exit at certain times. Turnstiles allow free passage in power cuts. This is a legal obligation. However, if it is requested to remain locked in case of power failure, it is optionally provided with the written instruction of the customer. Turnstile’s rotation direction (for entrance and exit) is determined by internal sensors. The centering of the turnstiles after the passage takes place mechanically and softly by means of a spring and hydraulic shock absorber.
Operating Voltage 100-230 VAC. 47-60Hz
Power Consumption 7W in transitions, 12W in standby
Operating Temperature -20° / +70° Optional: -50° with heater
Transition Rate ~20 persons/minute.
Transition Range 47 cm
Weight ~180 kg
The Karen’s half-height turnstile is suitable for both indoor and outdoor applications. Ideal for access control at swimming pools, sports complexes and fitness centres. This tourniquet model is user-friendly and provides security without extra supervision. The height of the turnstile prevents entering the building without an entrance ticket.
