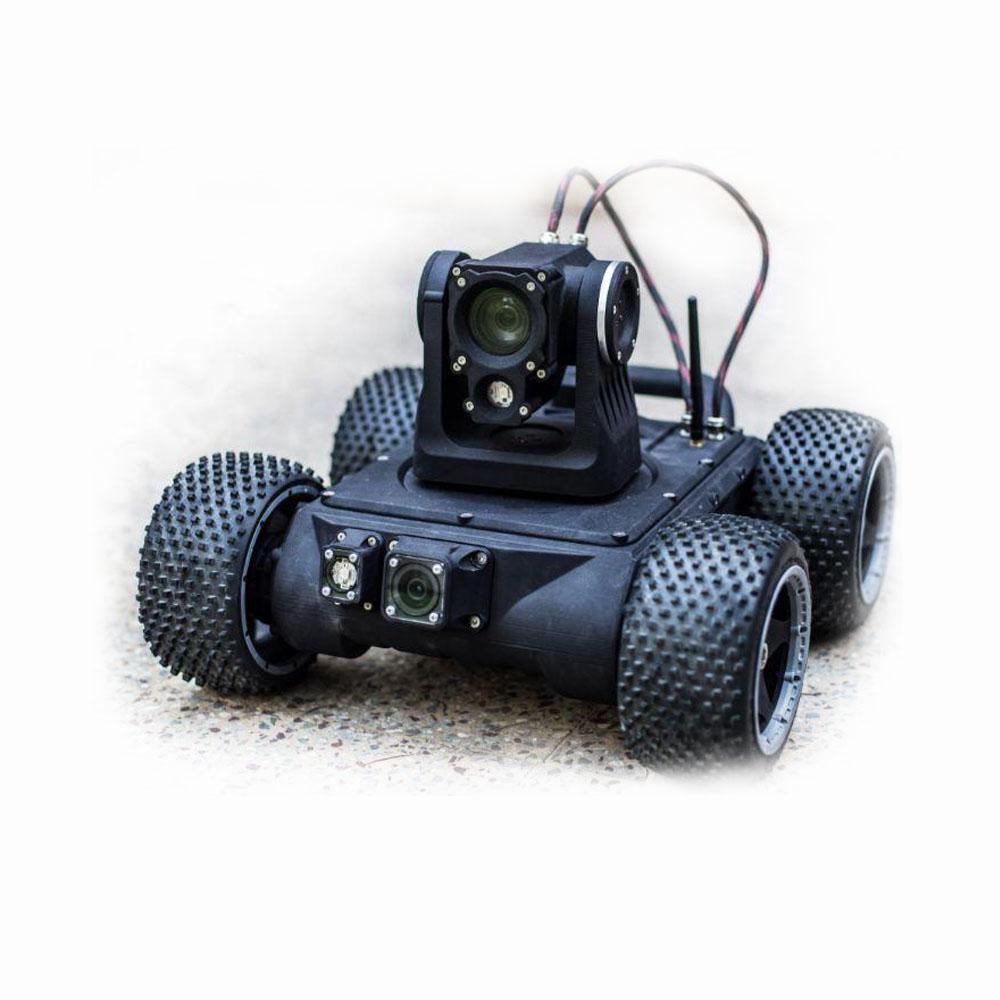

The Karen CR-70 Features and Benefits of the Industrial Pipe camera robot Inspection System:
The Karen CR-70 pan , tilt head camera features a constantly upright picture, endless rotation and a panning range of -20° up to +110° thus enabling a comprehensive inspection from every viewing angle and in each position. Inspect area and pipes from 100 to 300mm.
The multi-functional, portable Karen CR-70 control panel allows carrying out inspections according to predefined standards, while the user can freely configure the text generator as desired. Additionally it is possible to record the inspection video or to take pictures. With a daylight viewable 800 x 600 pixel touch screen display including a virtual keyboard and intuitively operable control elements the Karen CR-70 offers everything required for a user-friendly, efficient inspection.
The light weight and compact design of the Industrial CR-70 makes it perfect for plant inspections or wind turbines, where portability is a must. The cable reel provides 100m -200m of coninious cable enabling the CR-70 to go where push rod camera systems cannot reach. The CR-70 is fully steerable and allows the operator to keep the robotic camera sytem centered in the pipe without roll over and to turn 90 degree bends. Integrated laser to determine crack widths allows measurement of defects and a better determination of damage to your industrial systems.
