Handheld explosive detector for quick accurate results
The Karen HHED-20 trace detector explosives trace detector uses advanced chemiluminescence technology to detect homemade, military and commercial explosives, including icao taggants, plastics, ammonium nitrate, black powder, other nitrates and tatp, h.Mtd
Built to withstand rough handling and tough environments, The Karen HHED-20 packs potent detection capability into a lightweight, durable thermoplastic housing. The handheld Karen HHED-20 analyzes both particulate and vapor samples in seconds, without the need for radioactive isotopes or carrier gases.
A global leader in explosives, chemical and narcotics detection, HHED-20 trace is Karen’s Türkiye-based trace detection division. These products deliver unsurpassed accuracy, speed and reliability for detecting the most dangerous and cleverly concealed threats

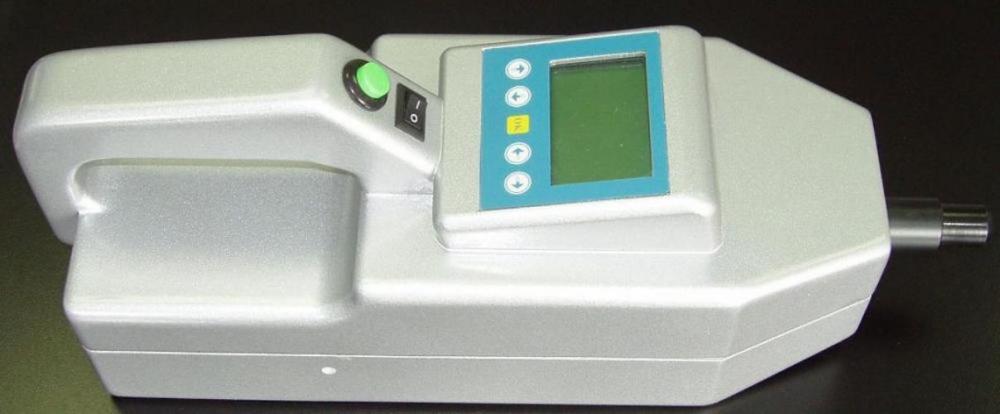

Karen HHED-20 Hand Held Bomb Smell Detector
Hand-held, practical, lightweight and easily portable hand-held bomb odor detector system detects explosives quickly between 2-10 seconds. Bomb detector works with 24 volt dc voltage, 110 /220 volt ac. Rechargeable, spare battery is available. When the bomb is detected, it gives an audible and visual signal on the LCD screen. The bomb explosive detection detector measures 41cm * 14cm * 14 cm. It is quite light. It has a weight of 3.3 kg including the battery. It has an SD card slot. It keeps 120,000 records in its memory with a 2 gb sd card,
Handheld bomb detector Analysis time: 2-10S Power: 110-220V AC, 50/60HZ Alarn: Audio and visual, with substance identification and display on LCD screen Dimension(L x W x H): 410mm x 140mm x 140mm Weight: Less than 3.3kg (with battery) Working temperature: -10℃-60℃ Data memory: 120000 records (2G SD card)
The Karen HHED-20 can detect explosive materials from the air or through a wiping test. The detector is portable and can be operated independently of the mains with its replaceable rechargeable battery. Its sensors detect all types of explosives, from black powder to plastic explosives and TNT. The analysis time is only 5 – 10 seconds and the device gives the alarm audible and via the integrated color display. The detected explosive type is displayed. The device provides an interface to the PC for software updates and measurement evaluations.
