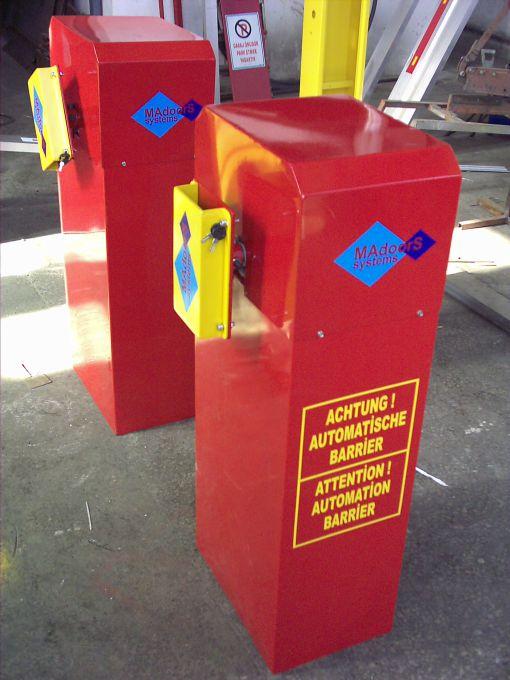

Hydraulic type rising drop arm barrier.
Product Code : HKBS 30 – HKBS 80
It works with hydraulic pump and hydro-motor. The strongest Arm barrier type and very useful. Spare parts are almost nonexistent. It offers trouble-free service at entrances where it has been established for many years. The speed of opening and closing of the barrier arm can be adjusted by hydraulic valves.
Opening and closing speed maximum. 1-3 sec. is. It is generally preferred at highway toll booths, entrances and exits with intense flows, and in law enforcement. Thanks to the hydraulic power it produces, it lifts a 40 * 80 * 3 mm steel profile arm instead of light aluminum arm. For this reason, the arm does not break and there is no damage to the barrier.
The case is 3 mm completely. is steel. The initial investment cost is a bit expensive compared to other barrier systems. But looking forward, it is a barrier that does not require service. In short, it is unproblematic.
Hydraulic arm barrier security measures; Barrier arm pneumatic wick (arm lifts back up during contact with vehicle or pedestrian entrance), Photocell safety sensor, Loop metal mass detector, Flasher lamp, Red green 110 cm. led traffic light, Optional collision alarm kit, Power led lighting on arm, Star-stop-emergency stop button application with fixed cable, 2 channel remote control receiver card, 2 pieces 2 channel remote control button, Hydraulic release valve, Use in manual power failure hand joystick for Hydro-automatic arm barrier technical features; Working with 220/380 volt ac voltage, 1.1 kw motor power, Max. 10 amp fused load switch, 60 Kilo arm carrying capacity, fens preventing the passage of pedestrians or animals under the arm, the possibility of carrying mesh wire, Complete steel case 3 mm. Possibility to produce electro static paint or stainless steel cr-ni Our hydraulic automatic arm barrier systems are 100% local Karen system manufactured by our company. We have 2 years of uninterrupted warranty, 10 years of spare parts guarantee. All of our products have CE, TSE certificates.
Product Code : HKBS 30 – HKBS 80
Specifically designed for light – medium traffic applications, the Karen M-1000 can raise beams from 6 1/2 to 13 feet (2 to 6 meters) in 3 – 8 seconds. With a 100% duty cycle ideal for certain residential and commercial uses.
Hydraulic motor with opening and closing blocks
• Ideal solution for dense but continuous traffic
• Electronic deceleration, patented
• Barrier status can be transmitted to traffic controllers
• Automatic, semi-automatic, parking, apartment and private study logics
• External wasted with triangular switch.
• Built-in detector, two independent channels.
• New circular arm with light support.
Karen Hydraulic Arm Barrier Gate Operator Specifications
* Duty type light to moderate volume traffic control, standard width
entrances
* Duty cycle at 72(F (24(C) 50% motor run time
* Opening time 3-8 sec (depending on beam length)
* Beam lengths 6 1/2-13 ft (2-4 m)
* Beam types available rigid, articulated, skirted
* Beam materials available rigid: aluminum and wood articulated &
skirted: aluminum
* Power supply 115 VAC or 230 VAC -10% to +6%; 60Hz
* Motor horsepower 1/3 hp
* Ambient temperature range -33oF to 165oF (-36oC to 74oC)
* Hydraulic locking positions opened and closed
* Cabinet dimensions (l x w x h) 6 3/4 x 10 9/16 x 39 in. (17.2 x 27 x 99
cm)
* Weight (approx.) 100 lb (45.5 kg)
* Electric motor single phase, bi-directional
* Anti-crush system hydraulic valves (by-pass)
* Features keyed manual release in the event of power failure
* Dedicated Logic – The electronic intelligence of the Karen offers six types of control logics, including automatic and semiautomatic.
* Easy to Maintain – Maintenance could not be simpler and diagnostic checks -are immediate thanks to the input LEDs. Like all Karen hydraulic operators completely self-contained for reliable operation.
* Standard Features – The Karen Arm barrier has many standard features, including hydraulic anti-crushing safety, hydraulic locking so that the beam remains secure in the opened and closed positions, and a manual release with a personalized key.
