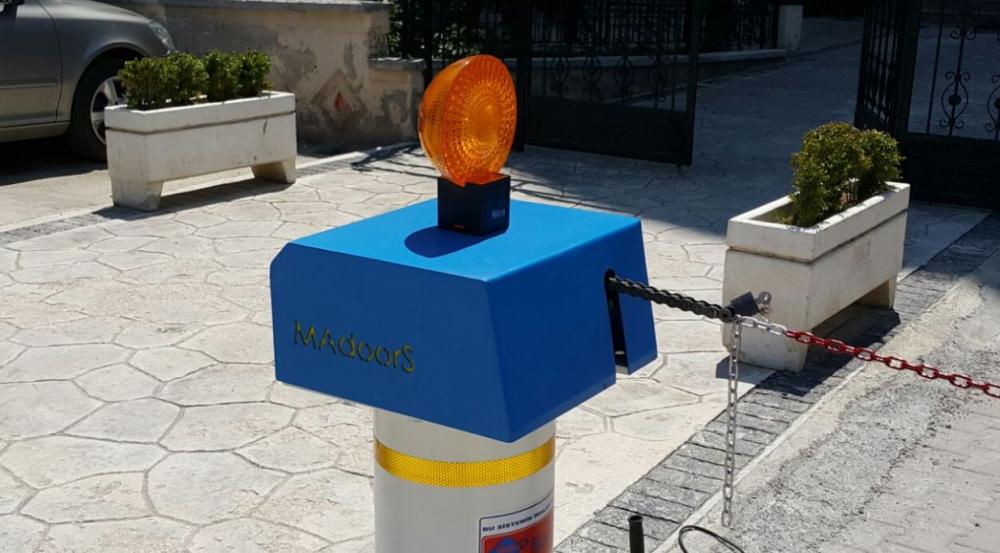

Automatic Chain Barrier
Automatic Chain Barrier, features pre programmed control panel for quick installation with space inside for battery backup kit. Casing is made of high quality galvanised plate powder coated to work well for years and look good at the same time.
Automatic Chain Barrier – Bollard System can be used to close off an area and is an excellent deterrent. An alternative to the traditional barrier arm and more imposing than a standard bollard. When lowered the chain can be driven over and is robust.
A unique product that has great use in the delimitation of private and public parking, with one or more car parking spaces. A highly technological product with a design that complies with the most demanding architectural contexts. Available with mains 230 vac or low voltage motor.
Facility to create automatic chains barrier bollard opening up to a maximum of 25 meters wide with only two pillars and a single chain.
The Karen Automatic Chain Barrier is a highly technological product with a design for all contexts. The installation flexibility allows for creating automatic chains up to 25 meters with only two pillars and a single chain. Automatic closure comes on after the preset time fully adjustable by a trimmer, whilst the operation speed is a swift 8-11 seconds.
This system includes a Master Bollard and control panel, Slave Bollard with counterweights, 9 mm. chain suitable for an 25 meters opening, complete radio gear and photoelectric beams for your safety. A floor channel between the bollards is installed to protect the chain.
Karen Motorized Chain Barrier Features
Max Chain Width – 25m
Chain Speed – 8 Seconds
Max Usage – 60 cycles/hour
Manual Chain Unfastening Device
Slowdown Speed Regulation
Power Regulation
Slowdown
Automatic Closing
Karen Automatic Chain Barrier Kit Contains
Both Pillars – powered and non powered
Control Box
25 Meters Chain
2 Pair Photocells
2 Remotes Control Buttons
1 Flashing Light
