M50 M30 Impact Test Rising Beam Barrier
High-security, antiterrorist, bidirectional rising beam barriers (width from 3 to 10 m)
( Product Code : MDR-RB-1000 )

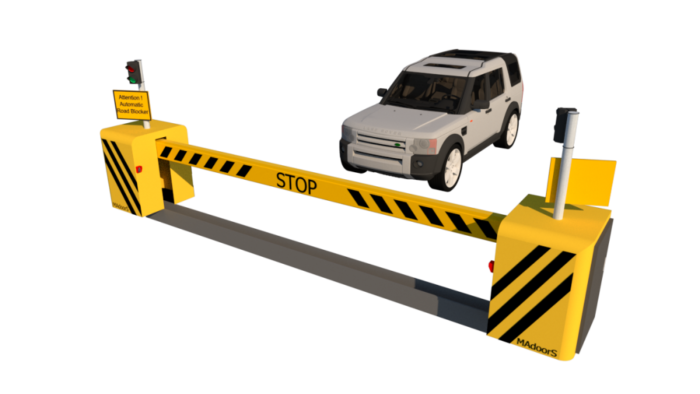

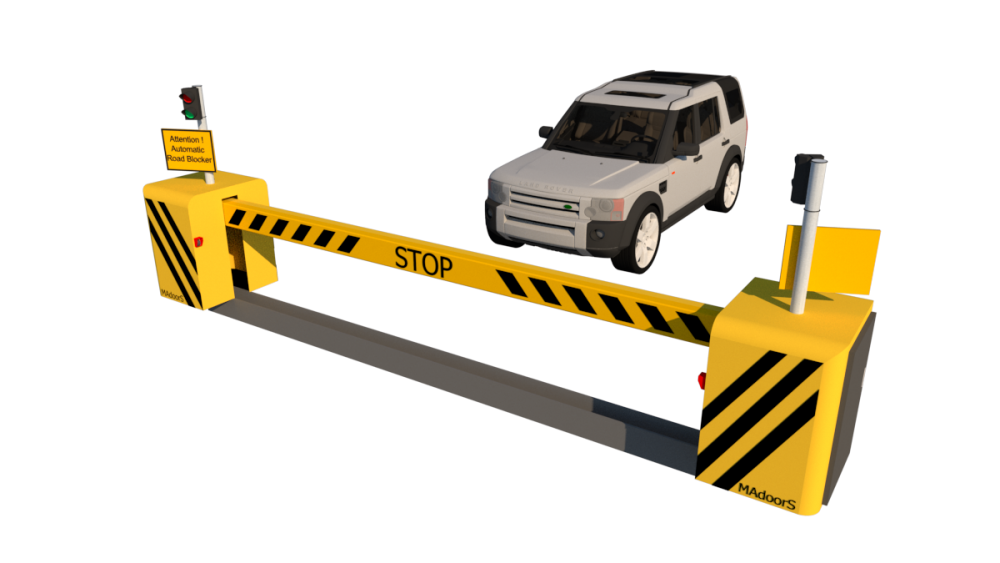

The Karen Automatic Hydraulic Rising Beam Barrier M50 Impact Test Rated lift barrier is a retractable automatic anti-ram device capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h).
Rising Beam Barrier
The Karen rising beam barrier drastically increases perimeter entry security. This security barrier has a rapid deployment rate and remains functional even after a crash, making it an excellent choice for high security access control.
The Karen rising beam barrier utilizes a hydraulically actuated structural beam that is recessed flush with the roadway when granting vehicle access. It also has a rapid rate of deployment between 3 and 5 seconds and a full guard height of 120 cm . The crash beam barrier’s primary excavation is outside the roadway opening, and minimal excavation is required across the roadway, which avoids most underground utilities and obstructions.
Features
K12 & M50/P1 Crash Test Certified ( Impact Test Rated )
Remains functional after a crash
Capable of spanning distances up to 10 meters
Hydraulic Power Unit and weather proof enclosure
Karen Automatic Beam Barrier
Standard Features
Weather Proof Enclosure – White
PLC with Color Touch Screen
208-240v/3ph/60Hz Power
High/Low Voltage Circuit Protection
Selectable Loop Programming
Maintenance Operating Screen
2 Programmable Inputs per Zone
2 Programmable Outputs per Zone
Integrated Traffic Arm or Sliding Gate
5hp Motor
Low Oil Level/High Oil Temp Sensor
Hydraulic Oil Filter
Manual Secure/Unsecure Valve Overrides
1 Manual Operated Reserve Cycle
Manual Hand Pump
120 Cycles per Hour Defender
135 Cycles per Hour Sentinel
Optional Power
460-480v/3ph/60Hz-50Hz. or 220 Ac . Voltage
Control Options
Master Control Panel – Pushbutton
Remote Control Panel – Pushbutton
Master Control Panel – Touchscreen
Remote Control Panel – Touchscreen
Radio Controls
Additional Options
7.5hp Motor Upgrade
10hp Motor Upgrade
Up to 250 Cycles per Hour Defender
Up to 275 Cycles per Hour Sentinel
Hydraulic Oil Heater Cooler
Enclosure A/C Unit
Emergency Fast Operate (EFO)
Single Channel Loop Detector Module
Low Voltage Battery Backup – Provides 1 Reserve Cycle
HPU Battery Backup – Provides up to 40 Reserve Cycles
Wrong Way and Over Speed Detection
Enclosure Tamper Switches
Enclosure Strobe Light and Horn
Enclosure Custom Paint
Enclosure Convenience Light
Standard Colors
Black powder coat
Custom Design Options
Stainless steel
Custom color powder coating
Reflective banding
Additional Options
Traffic signal lights
Custom painted finish
Integrated traffic arm or sliding gate
