Dedection of buried landmines , tank mine with x-ray backscatter
As a major technology step forward, Karen system X-Ray minescan-4000 has developed of a mobile 220 kv , 450 kV, 650 kv landmine scanner system based on the principles of X-ray backscatter technology . The new scanner system has the following capabilities and advantages
The information depth is sufficient to detect all regularly placed mines Minescan-4000 is able to detect metal-free landmines landmines buried in a variety of soil conditions including various types of vegetation will be detected with Minescan-4000 . The most important argument for Minescan-4000 , however is the fact that Minescan-4000 in contrast to all other detection methods is a direct imaging technique. This is possible because the scatter signal is directly proportional to the material density of the irradiated volume.
The X-ray backscatter technology has the potential for low false alarm rates and a high detection probability. The minescan-4000 x-ray backscatter landmine scanner has been tested very successfully . Looking at the high resolution images, a trained operator is able to identify the buried object immediately.
Our Minescan-4000 mine detectors work using x-ray technology. Our product takes the image formed on the sensors that detect the reflected x-ray beam.The received image is transferred wirelessly to the trailer that has an imaging system . There are control system computer, monitors and software in the trailer. Our mine detector detector has been added to the remote control machine. Our X-ray mine detector is also connected to the computer system inside the vehicle

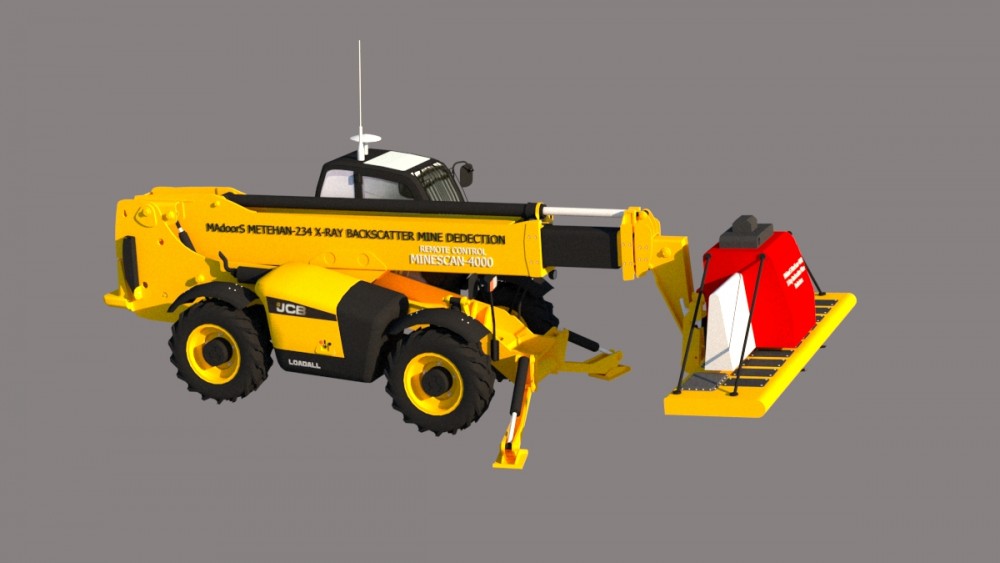

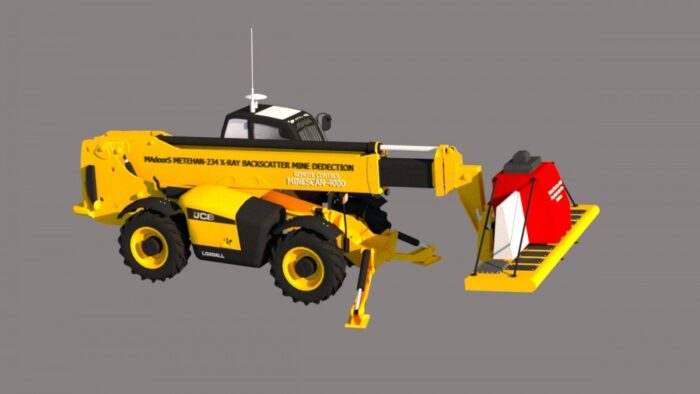

There is software in the computer that works completely with our domestic and national resources. The software automatically detects mines, marks the mine and transmits audio and visual images to the far point. Minescan-4000, 50 cm. marks all mines buried to depth . If a satellite connection is made to the device, the device automatically creates the mine map. Marks on the map where all mines form their coordinates, Mine in coordinates; It records the photo taken from the x-ray system, the date and time together with the coordinate axis in the software as a package.There are 2 separate computers in both the remote controlled armored mine search vehicle (Metahan-234) and the trailer. Computers communicate with each other via wireless remote connection . If there is a satellite connection, there is no distance limit. The device is controlled from the desired distance.
In this way, without damaging the vehicle, the arm is extended and mine detection is made at a distance of 10 meters. It performs scanning and recording with no length limit of 2 meters wide. It can scan 4 acres of land per hour and produce a mine map with the best average mine sweeping speed. It is a completely domestic and national product. Thanks to this product , it is prevented that the pallets of the devices that seek mines by detonating and that are inserted into the mine fields are not broken and disabled by pressing the tank mines . Both life and property losses are prevented. Thanks to our device, tank mines are pinpointed and removed and moved to another point without detonating the mine. Our robots that clear the mine from the buried land , The mine is removed from the ground without the human element . It is ensured that the mines removed without detonation and the mined lands suitable for agriculture are brought back to agriculture.
