Spike Road Blocker Barrier
Anti-terrorism high security automatic hydraulic spike barrier traffic road block
Karen’s Spike Type Special Road blockers are heavy duty and anti-terrorist barriers that are installed at high-sensitive areas where unauthorized vehicle have strict restrictions for access. They are installed with an intention to block the roadways for vehicle passage and to obstruct the vehicle based attacks. The Automatic spike road blockers are mounted by excavating the ground surface and installing a shallow foundation.
They can be lowered to clear the ground surface for vehicle movement and raised at an inclination to act as a barrier. The spike road blocker barriers have manual as well as automatic hydraulic raising and lowering operation. The spike road blockers can be crash rated ( ımpact test )and certified according to its capability of stopping and destroying the vehicles after the attack. These are installed at high security locations including military areas, embassies, government offices, etc.
Karen Spike Hydraulic or Electromechanical Road Blocker guarantees maximum safety for the highly sensitive, highest security location against undesirable vehicles of different sizes and weights.

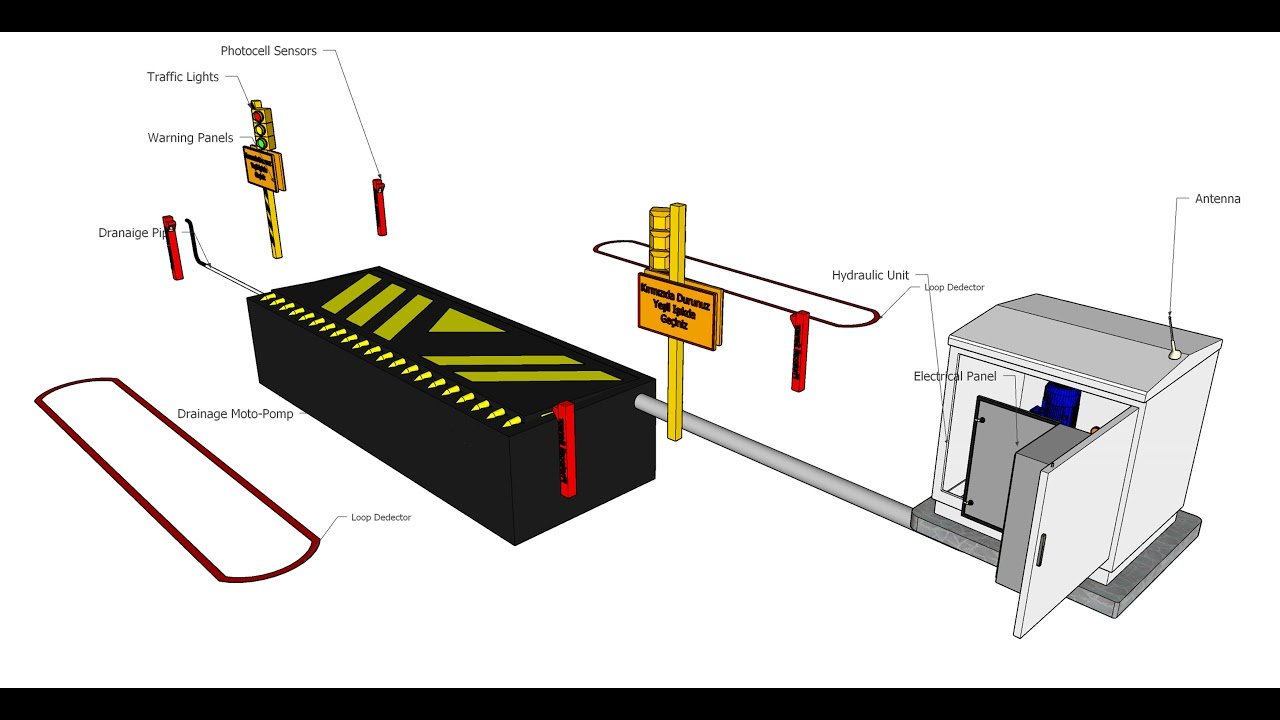

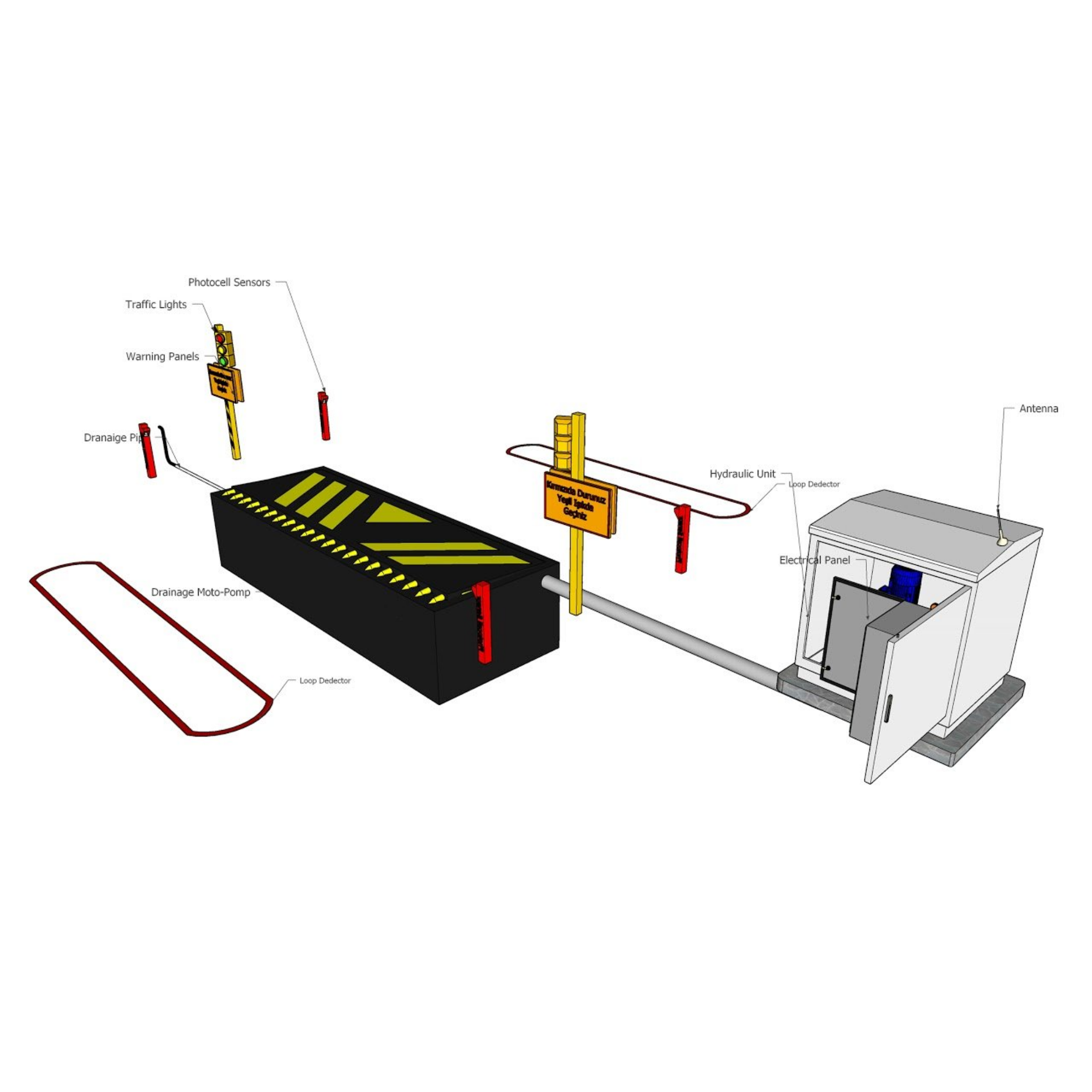

Automatic rising kerbs are hydraulically powered by means of a standalone heavy duty hydraulic station. The power pack is generally mounted in a steel roadside cabinet like a safe box. The control box is a Programmable Logic Controller (PLC). The actual operating of the road blocker is by means of hydraulic cylinders, built underground within the main structure of the road blocker. The hydraulic oil is transferred through 1/2 high-pressure steel braided hydraulic hoses, which are professionally made to suit specific site requirements. The hydraulic power pack is equipped with either a single phase drive motor, or a three-phase motor, which 3.75 KW or 5.5KW to allow a very high load of operation. This is ideal for large car parks or busy sites, like the airport, a border checkpoint, prison, toll gate, etc.
Hydraulic spike road blockers flushed mounted with the ground level at the entrances to provide safety. The road blocker can be in conjunction with any access control system, for example, RFID card swipe system, parking barrier system, ETC system. It is generally installed with ground loops for vehicle safety and red/green traffic lights to give an indication of when it is safe for a vehicle to proceed. We will provide 2 remote controllers and 1switch button as standard configuration.
The LED strip design is our own design which is different from others. We can put the company name in the middle. The speed of our road blocker can be less than 1s. The hydraulic cylinder is with damper. It is fast speed but low noise.
Main Features
1. Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down
2. Micro-control technology makes bollards work stable and reliable, Easily integrate to other systems
3. Compatible with road barrier, Turnstiles and other access system control to achieve automatic control
4.Advanced Hydraulic pressure technologies
5. Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Controller display : LCD and LED , Normally Types
8. Swiping card system : built-in card reader to control Road blockers up&down
9. Road barrier integrate with Bollards: built-in access control realize road barrier, Road blocker and bollards in one-card
10.Connected with Computer Management OR Charging Systems
