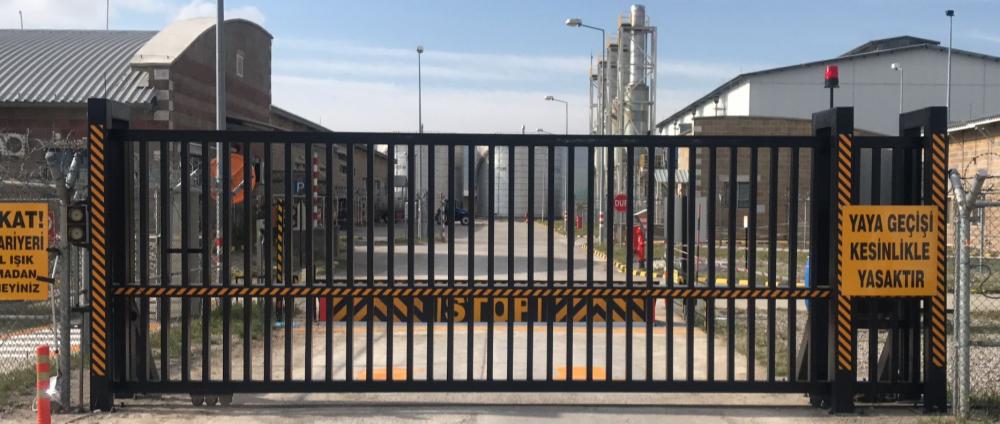

K12 Crash Test Rated Hydraulic Sliding Gate , Pas68 Crash Tested Automatic Electromechanical sliding gates , Anti-terrorism Motorized Automatic Sliding Gates, Our product has K4-K8-K12 crash test level
Automatic high security sliding gates come with a hold to run control as standard, however they can be customised to interface with a wide range of access control equipment to suit specific customer requirements (available as options) and any configuration including (but not limited to) inductive loop systems, card readers, communication equipment and manned guard panic systems can be accommodated. K-12 crash test rated sliding gate Crash Gates tested to K12 PAS 68 N3
Where the High Security Gates control point is remote from the installation, we strongly recommend the fitting of a recordable CCTV system, traffic lights and safety inductive loop systems. Anti-terrorism sliding gate
Please note that a full site risk assessment must be carried out at design stage to ensure all relevant safety systems are included as this is a specialist high security product and is designed for use with vehicles only.
From airports to embassies, from warehouses to depots, Karen crash-rated gates stop unauthorized pedestrians and vehicles from entering places that they don’t belong. Some models operate without contact with the ground across the opening, one is a manually operated swing gate and others operate with rack and pinion drives across V-groove wheel ground tracks while incorporating IR safety beam and safety edges. Swing versions are also available.
The clear openings range from 12 to 30 feet (3,657 mm to 9,144 mm). The standard height for all, except the swing gate, is 109 inches (2,769 mm). There are five different models to choose from, assuring that any facility can incorporate a gate that will definitively meet its security demands. Not only can these popular crash gates withstand impacts as high as a 15,000 lb (66.7 kN) vehicle striking at 50 MPH (80 KPH) and suffer no significant damage, but they can look good too.
Architects and contractors can choose from sliding and swing crash-tested gates in 14 different decors – green landscaping, screen printed glass, steel screen, back-painted glass, laser cut steel in two versions, panelized colored acrylic, panelized stone, panelized concrete, cast stone, wood and stone, panelized wood and wood screen. pas 68 crash tested sliding gate Karen’s sliding security gates are powered by either electro-mechanical or hydraulic systems. Typical drive speeds are 60 ft (18.3 m) per minute, depending on electrical supply and gate length. Supplied Karen controls meet all requirements for control and safety.
Anti-Crowd Control Positive Latch Pin Latch that secures the gate in the fully closed position and protects against mobs forcing the gate open. Touch Screen Control Panels, plug and play installation, network capable, data logging and programmable maintenance and functions. Programmable Logic Controller (PLC) with Inteli Gate control features. Built in Safety Edge, IR Safety Beam, Inductive Safety Loops , Shallow Foundation Design , One Day Installation.
Power Options:
Fully Manual Operation. Ideal for infrequent use locations.
Electromechanical: Rack and Pinion Drive sized to power the gate
Hydraulic: High power and high speed applications or for shared use of the hydraulic pump operating high security barricade systems.
