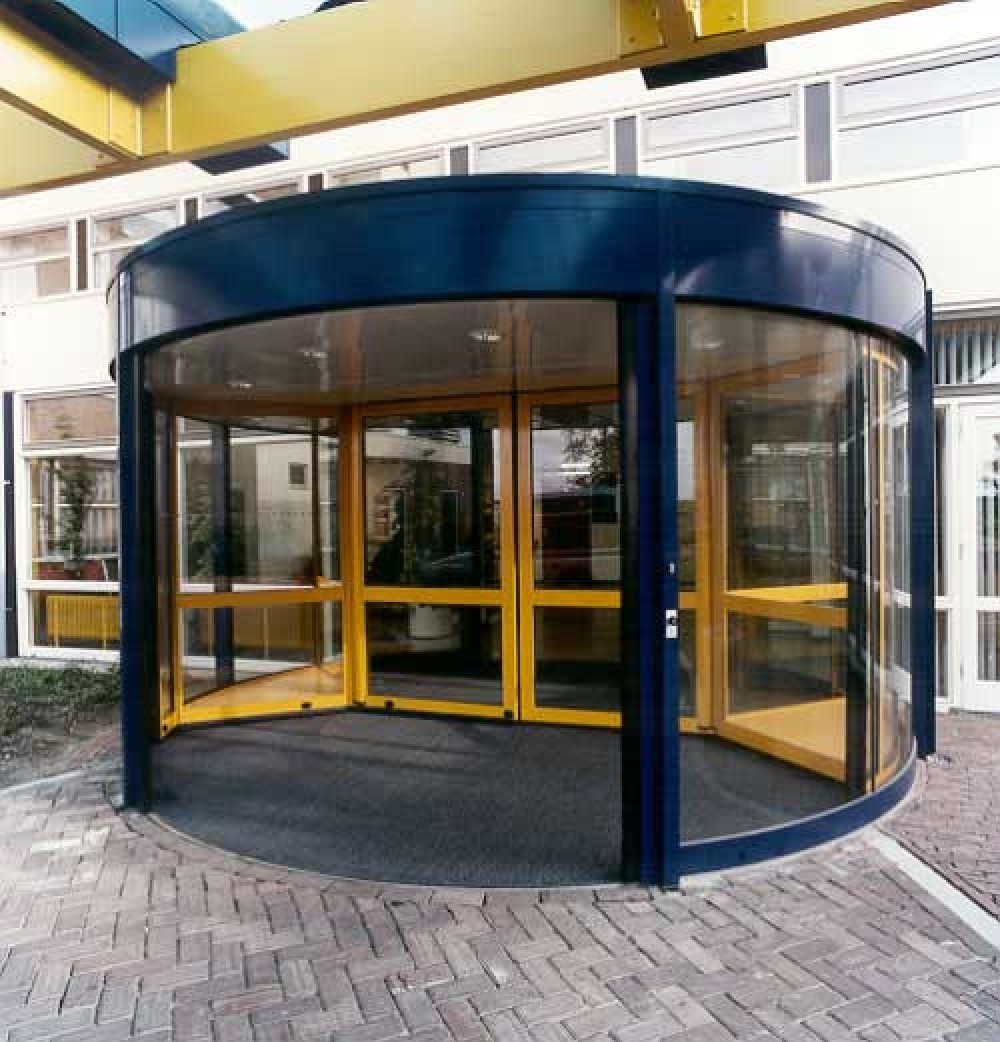

2 Wing Photocell Automatic Revolving Door
Our Karen Two-wing revolving doors . The normal usage is the double-winged revolving door feature. In case of need, if the photocell door mode is selected from the control panel, the revolving wings are fixed on the door axis and offer the automatic sliding door in the middle for your use. It is optional to choose the middle of it as a sliding door. In case of panic , the wings in the middle of the door are broken 90 degrees , providing a panic transition opening . Our door diameter dimensions are R= 3000 – 3600 – 4200 – 4800 – 5400 mm. It can be taken as a basis. We have two-wing photocell revolving door manufacturing options for your projects.
Our 2-wing motorized revolving doors can be manufactured in the type that we call the wing whose doors in the middle part are broken in case of emergency. Wings that are opened by breaking are of the type that open outward from the inside with a certain force or inward by getting rid of their pins by pushing from the outside . The volume of the showcase parts of these doors, which are of the showcase type, increases in proportion to the door diameter. If the door diameter is increased, the diameter of the showcase can be increased and you will have the opportunity to display your larger types of products in a Two-wing revolving door showcase.
By operating our Karen system 2-winged motorized radar revolving door systems as a console, it can be coupled to the photocell glass door system that opens to the sides in the middle. The door can be pulled to the photocell glass door position in case of emergency or heavy use of passage. In this mode, the revolving door remains fixed perpendicular to the entrance. Photocell glass door system is activated.
Plc control systems, motorized automatic 2-wing revolving door systems can be designed in accordance with the software needed according to the usage situation. The PLC units and panels of the 2 doors are connected to each other and communicate with each other in order to work in coordination with each other in 2-wing revolving doors with the possibility of working back-to-back. The doors are aware of each other’s location information and work in a linear way with the software.
