Ground Mounted Speed Hump Under Vehicle Imaging-Inspection-Surveillance Camera System
It is mounted on the floor. It is completely steel frame and is not damaged by heavy tonnage vehicle transitions. The case is hot dip galvanized. It does not rust or corrode in long years of use. Linescan and Areascan camera technologies are used in our systems. During vehicle passage, the system detects the vehicle that enters through loop detectors and the camera system starts to work.After the vehicle rear bumper passes over the other detector, the photographs scanned line by line are combined and a complete photo is created. High resolution photos. With the license plate recognition system, the under vehicle photos of the same vehicle previously recorded are automatically compared by the system software. Differences are automatically marked. Audible and visual warnings are given. Our systems scan the vehicle line by line. Our license plate recognition systems and cameras are compatible with the license plates of all countries of the world. Recognizes every plate.

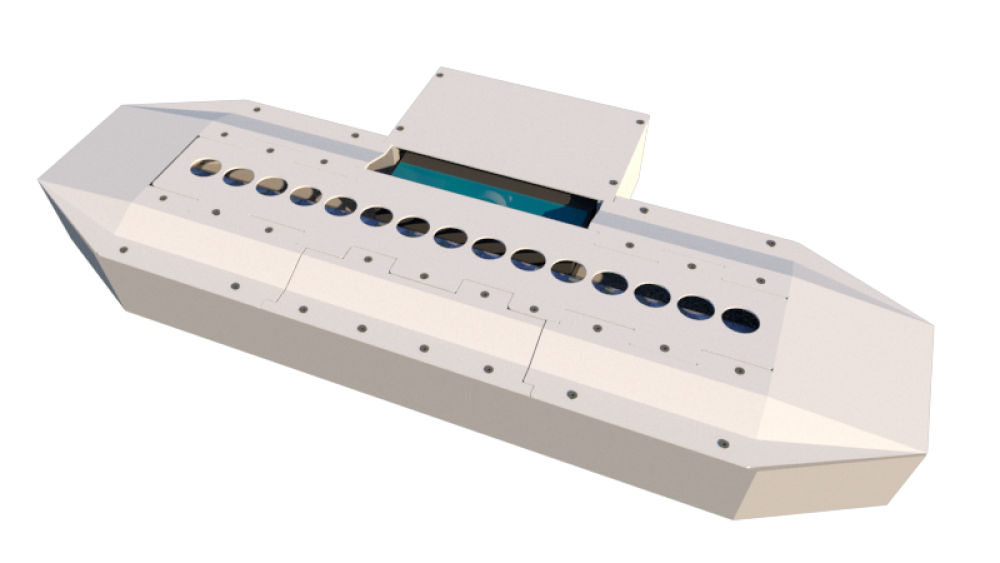

Our camera systems with a resolution of 2×2048 pixels are located under the vehicle in a fully insulated box. This box protects the camera from summer and winter ambient conditions. There is a thermostat heater kit in the camera housing. In rainy weather, the glass does not fog up in the winter months. Power led lights are 2 pieces. Lighting tube is pipe type and dirt and rain cannot hold on it. It is a polyethylene system, not a shatterproof glass.
It has a wide 27 ” monitor. Steel type has its own table. The monitor system is built-in type specially designed under vehicle scanning system table. Computer case and monitor are coupled to this table. If you have an existing barrier on the table, there are barrier system on-off keys. The system is designed in this way to work coupled with barriers. Our under vehicle monitoring systems can be connected to high security access barrier systems.
When the difference is detected under the vehicle, the barrier rises suddenly on the ground and closes the road. If the road is already closed to passage, the barrier system is locked. The user cannot operate the buttons and cannot open the road to the passage. The system asks for an admin user password. If the user password is entered, the systems will go into working state again. All our under vehicle camera and license plate recognition systems are guaranteed for 2 years. Our company is engaged in the production of the first vehicle developed and currently six types of systems engineering firm in Turkey.
Please contact our company for more detailed information about our bumpy type under vehicle imaging systems.
