Home Security Systems Flood Defence Protection Systems Drop-Down Flood Control Barrier
Kumkoy Basket Flood Defence Barrier
Kumkoy Basket Flood Defence Barrier
Back to products
Self Closing Flood Barrier
Self Closing Flood Barrier

Drop-Down Flood Control Barrier

Drop-Down Flood Control Barrier

Category: Flood Defence Protection Systems
Share:
  • Description
  • Shipping & Delivery
Description

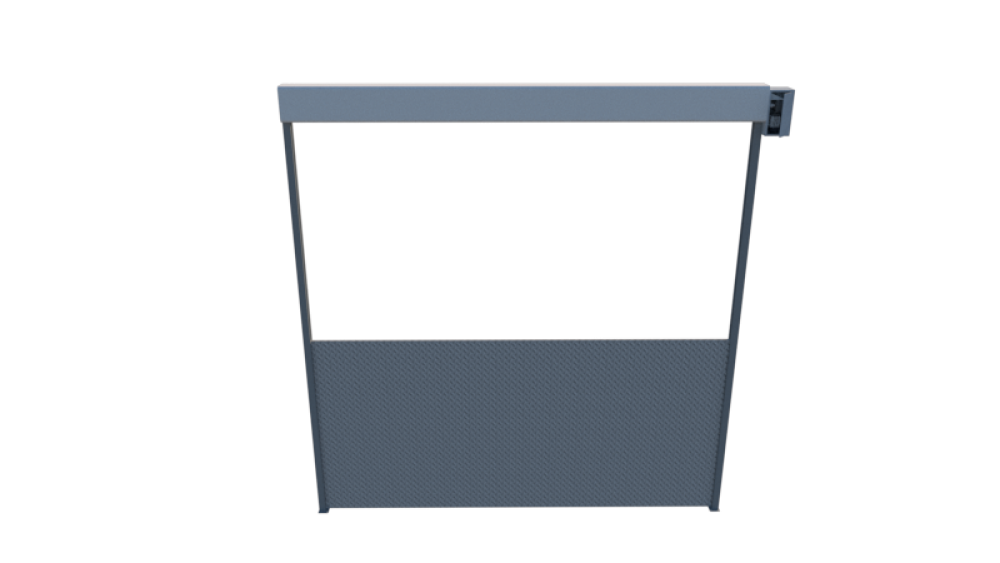

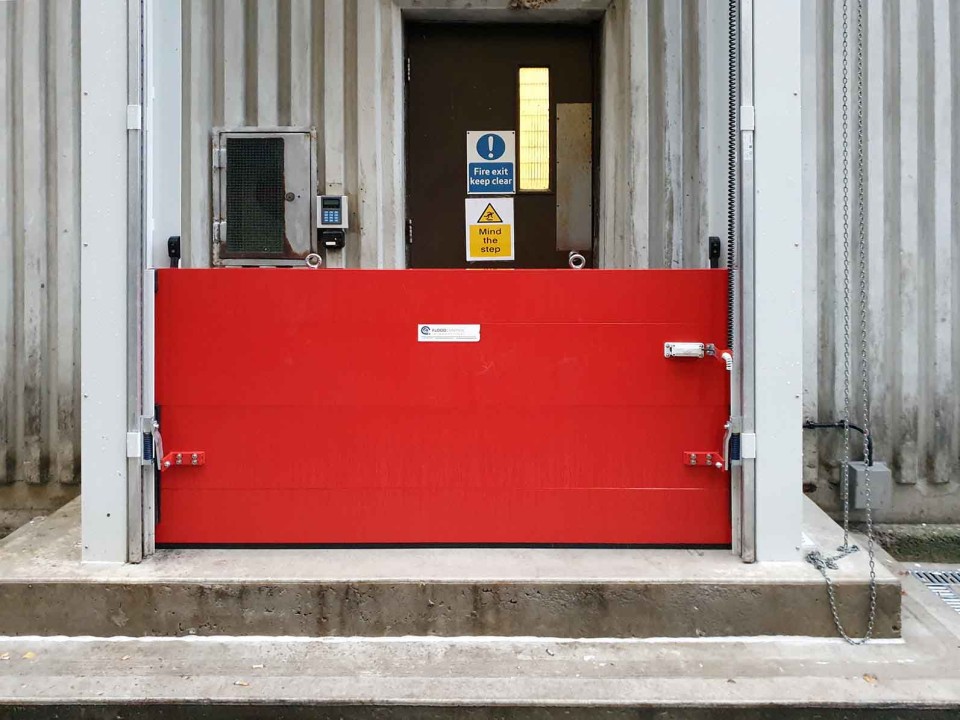

Drop-Down Flood Control Barrier

When not in use the drop-down Karen automatic flood barrier is unobtrusively located above the head of the opening, ready to be lowered at a moment’s notice. Automatic sensors can operate the barrier with rising floodwaters, or with push button operation for complete control.  Direct drive electric motors smoothly and precisely lower the barrier in to position and firmly lock it in to place to form an efficient, dependable flood defense. The Flood barriers work on dead level thresholds and require no excavation or civil works to install. Safety is a key factor in this design and all motors have a ‘free-fall’, dead-stop braking system built-in as standard.  In addition, all systems are installed with a pulley system that overrides the motorized drive and allows the Karen’s flood barriers to be manually lowered and raised in safety.

These automatic flood barriers can be supplied in any RAL colour.  Barriers can be mounted behind building facades making them as desirable in prestigious locations (such as hotel lobbies, plazas, shopping centres and head offices) as they are essential in factory entrances and loading bays. We can produce our flood barrier stainly steel , if our customers want to special type , We can covering with stone to our flood barrier ,  Your building same with shape

As optional features, the systems can be activated remotely, triggered by water or smoke detection or by security alarm systems.  Touch and motion sensors can also be added to the braking system whilst further security is available in the form of audio/visual alarms, warning as the flood barrier moves. Normally our flood barrier products are working to 220 Vac.or 380 Vac İf you want to battery set Our systems are 24 volt back-up system ensures that the flood barrier will operate in the event of a mains supply failure.



Shipping & Delivery

Related products

Sliding Flood Doors Gates

Flood Defence Protection Systems

Sliding Flood Doors Gates

Quick view

Self Closing Flood Barrier

Flood Defence Protection Systems

Self Closing Flood Barrier

The Karen Self Closing Flood Barrier is a carefully designed self-rising floodgate that has been in use globally since 2000 .  Its design uses the approaching floodwaters to raise the barrier automatically.  The passive operation, along with a minimal footprint and no need for steps or ramps makes this type of defence ideal for unmanned sites, for where aesthetic considerations mean that a permanent barrier is not acceptable, or where there would be insufficient warning and manpower to use manually installed barriers. Single Flood barriers are available up to 10m in length and 2.5m in height.  Multiple units can be linked together to create long runs where required, using permanent intermediate posts.
Quick view
Automatic Winged Type Flood Gate V-Gate

Automatic Winged Type Flood Gate V-Gate

Flood Defence Protection Systems
Automatic Winged Type Flood Gate V-Gate
Quick view
Automatic Flood Barrier

Automatic Flood Barrier

Flood Defence Protection Systems
The Karen Automatic Flood Barrier suitable for a wide range of situations. Depending on its design it can accommodate frequent day to day traffic and heavy vehicles. A compressible, highly durable seal is mounted horizontally within the flood barrier system. Vertical Sealing posts ensure a leak tight seal against the wall. The Karen Flood Barrier is made from galvanised steel or stainless steel 304 or a combination of both. The Barrier body, firmly bolted in hinges, is reinforced and includes mounting eyes for pneumatic or hydraulic cylinders. The cylinders are linked to unique mounts, which are likewise securely bolted to the barrier frame. The Karen Flood Barrier  is actuated by the push of a button or triggered automatically by water sensors. The water sensors are preset and monitors rising water levels. When actuated, The Karen Automatic Flood Barrier closes fully automatically or travels back into the standby position. The barrier is designed to be failsafe. Loss of power or air will automatically trigger the system. The required operating pressure is for pneumatic systems 4 - 10 bars. For hydraulic systems 40-60 bar . To meet safety requirements, the flood barrier is fitted with an acoustic warning signal. A visual warning light can be included to signal traffic or personnel that the barrier is in operation. Pneumatic or hydraulic ylinders used are suitable for outdoor installations.
Quick view

Manual Flood Barrier

Flood Defence Protection Systems

Manual Flood Barrier

Quick view
Automatic Surface Mounted Mobile Flood Barrier Gate

Automatic Surface Mounted Mobile Flood Barrier Gate

Flood Defence Protection Systems
Automatic Surface Mounted Mobile Flood Barrier Gate
Quick view
Kumkoy Basket Flood Defence Barrier

Kumkoy Basket Flood Defence Barrier

Flood Defence Protection Systems
Kumkoy Basket Flood Defence Barrier
Quick view
Automatic Pivot Flood Protection Gate

Automatic Pivot Flood Protection Gate

Flood Defence Protection Systems
Automatic Pivot Flood Protection Gate
Quick view
