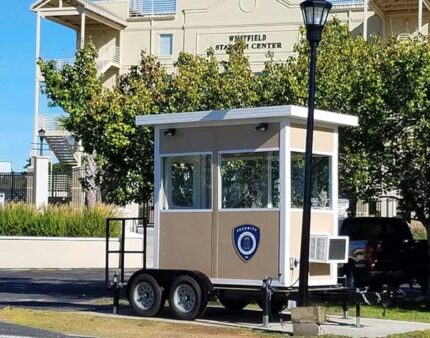

Armored Gun Guard Booths Houses
Units (Bullet-Blast Resistant Guard Booths) provide unmatched ballistic performance for all types of security applications. Fully prefabricated, each BRE is produced to meet specific levels of bullet resistance and (optional) blast resistance, offering enhanced levels of occupant survivability.
While Karen is most recognized for producing customized solutions, standard off-the-shelf configurations are also available
İn Arms Guard Shack – Materials of protection
Special alloyed steel Miilux Protection 500, which has a unique blend of ultra-high hardness (500-540 HB) and high plasticity. Manufactured in Finland by Miilux Ltd. (Part of the Miilukangas group).
Anti-bullet wings. Features a special multi-layer structure: separate layers of glass, assembled with a special PVB film. From the back, a layer of anti-spall polycarbonate, which protects the troops from secondary spores, which can be formed after shooting on the glass.
Armed guard booth – Ballistic protection
DSTU 3975 level 6+ / STANAG 4569 level 3:
– Kalashnikov АКМ (caliber 7,62 mm, armored bullet BZ)
– Kalashnikov АК-74 (caliber 5,45 mm, bullet 7N10)
– Dragunov rifle (caliber 7.62 mm, armored bullet B32)
– NATO rifle (armored bullet with wolfram core)

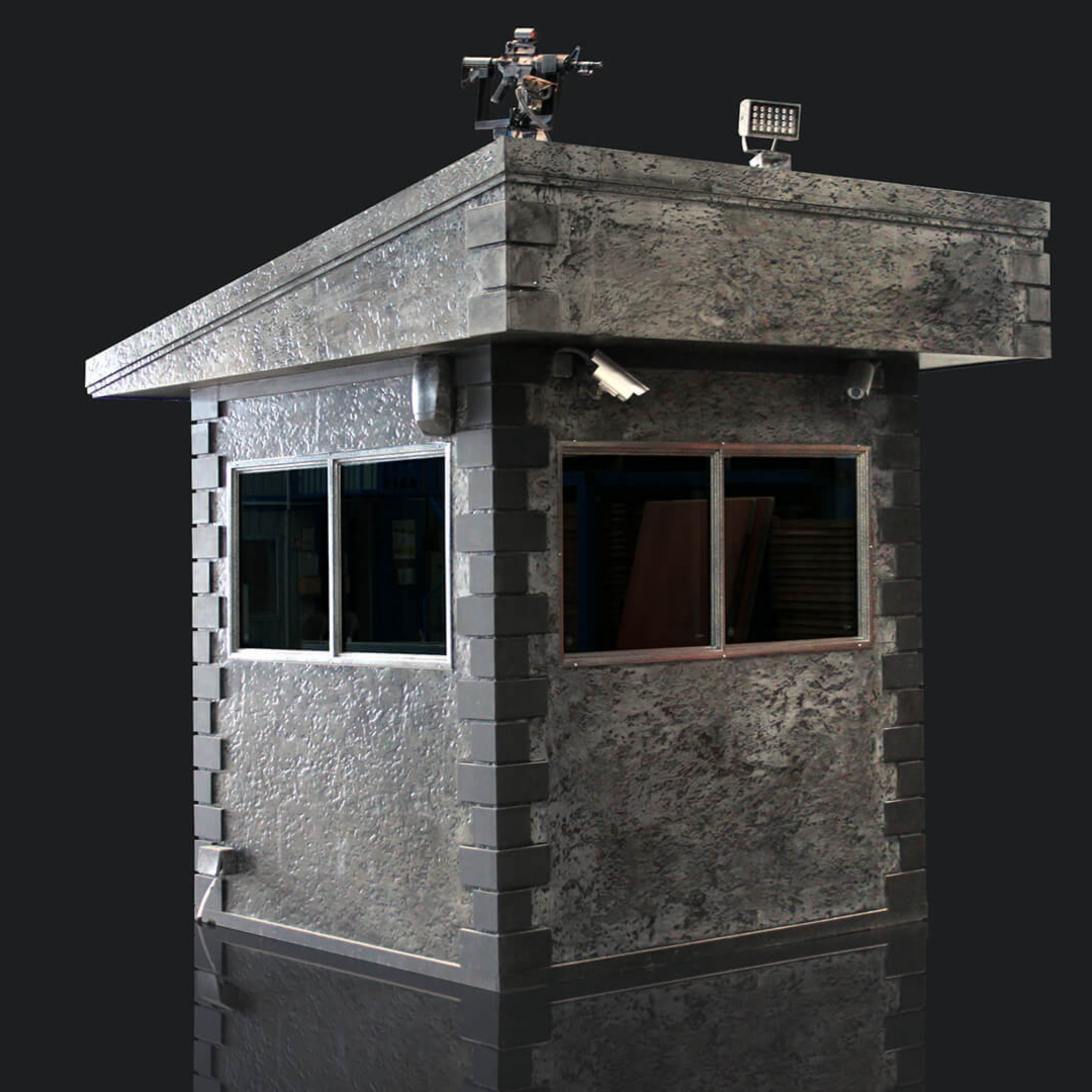

Weapon Gun Turret Ballistic Guard House General description:
Body dimensions: 3.7 x 2.5 x 2.4 meters (AS EXAMPLE! Can be changed upon customer request)
Anti-spall layer in the walls, which constrains the angle of defeat of the RPG stream.
Special insulating lining, which combines heat and sound insulation functions
Waterproof and heat-insulated rubber flooring, which provides thermal insulation of troops of cold and moisture coming from the ground (particularly important in the climate with hot days and cold nights)
İndoor-controlled electric heating of windows, which prevents freezing / sweating in case of rapid temperature change (particularly important in the climate with hot days and cold nights)
Window frames specially designed for rapid glass replacement, which gives the possibility of easily changing glass without the use of special tools
Blackout flaps, made of non-flammable material for “extinction mode”
Spring-loaded spray guns for easy opening, protected against breakage from the outside
Metal shields on the windows with observation slot, which gives the possibility to establish a mode “in secret service” with a minimum discernibility of the outside in the dark
Ergonomics
Air conditioning, which allows you to stay inside the guard post even in the hottest weather conditions
Heating system which, in combination with the thermal insulation of the floor and walls, maintains the comfortable temperature inside the substation (particularly important in the climate with hot days and cold nights)
Ventilation system with exit on the back, protected against different weather conditions
İnterior lights, which have several levels of illumination for the possibility of establishing a comfortable level of illumination and making a “service” mode with minimal discernibility from the outside in the dark
Finishing of interior walls with painted metal plates or other non-flammable material
Special ribbed floor covering, which prevents the slippage of shoes in wet soil
Preparation for the radio connection system, with the possibility of connecting different types of radio stations, according to specific situations
İndependent electrical system with a generator, which makes the house of guard completely autonomous and does not depend on external sources of electrical energy
Electrical outlets 220V, 50 Hz, located on all the walls which allow to connect different electronic devices
Lockers for clothing and various troop accessories, Holders of ammunition for different types of weapons, to which troops may be armed
Furniture , table, chairs, bed comfortable location for long term
Evacuation flap in the rear wall, which gives rise to emergency evacuation in case of extremely dangerous attacks
The multi-position hatch in the roof, with possibility, depends on the position, performs ventilation functions (in addition to the installed ventilation device) or emergency evacuation.
Loudspeaker for the possibility of making an audio warning
Outdoor ladder for rapid climbing on the roof
Motion detectors, which react only to human movements, but not to small animals
Infrared cameras on the roof for 24-hour observation of the outside area
The multi-position hatch in the roof, with possibility, depends on the position, performs ventilation functions (in addition to the installed ventilation device) or Emergency evacuation from the guard house.
