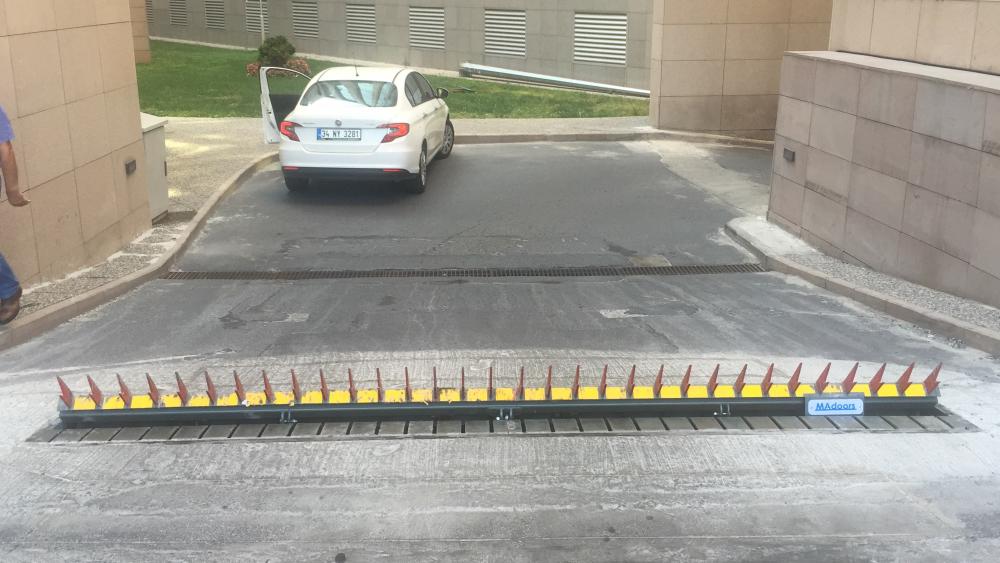

Hydraulic Spike Barrier – Tyre Killer
These are hydraulically operated and designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. Even though the attack Is from high tonnage vehicles with high speeds, It’s not possible for the vehicle to keep on moving because of the damage given to wheels and the rim of the vehicle.
Karen Automatic Hydraulic Spike tyre killers are designed to restrict and stop forceful entries of vehicles at defense installations, hotels, power sector installations and other security sensitive sites. Each Spike Road Block unit is equipped with maintenance free Hydraulic drive system and microprocessor based Automatic Spike Road Blocks control panel, capable of receiving input signal from variety of devices such as push button, remote control, optical beam sensors and magnetic card readers etc. For added safety and security Spike Road Block can be interlocked with Karen Automatic Barrier to work in unison with single activation device and control panel. Thus, Spikes will automatically go down when the barrier is open and come up when the barrier is closed.
Anti-Ram Hydraulic Spike Vehicle Barrier
Hydraulic Automatic Tire Killer Technical Specifications
Dimensions: Length 2000mm to 6000mm / height 110mm to 180mm
Construction Material: Fe 360
Speed of Lowering/Raising: 1 – 3 Sec
Load Capacity: 45 Ton
Option for Emergency Lowering
In Case of Power Failure: Manual Release
Duty Cycle: 100% Intensive Use
Height of spike above block: 25cm to 125 cm In Mild Steel & SS 316
IP Rating: IP 67
It can be Integrated with all access control
Karen’s spike road blocks are designed for reliability and low maintenance providing years of dependable service. For added safety and security Spike Road Block can be interlocked with Karen Automatic Barrier to work in unison with single activation device and control panel. This enables the spikes to go down automatically when the barrier is open and come up when the barrier is closed. resulting in easy & quick installation.
